Rexroth 165359410
Wózki liniowe

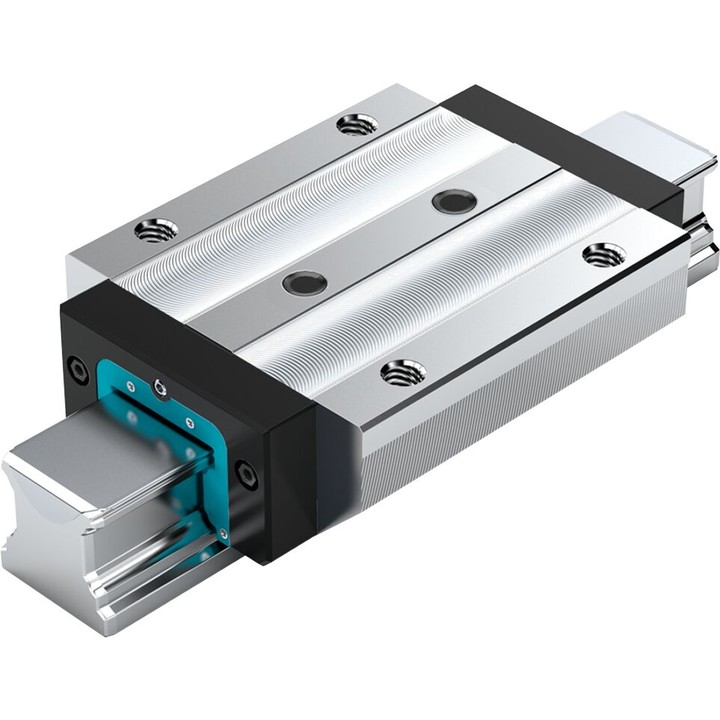

The ball runner block is highly precise and characterized by the following product features:
Size 55
Design FLS: Width = flange, length = long, height = standard
Runner block body made of carbon steel CS
Preload class C0: Preload-free
Accuracy class N: Normal
Without ball chain
With preservation
Without initial lubrication
Without attachment element, left (reference edge in front)
Without attachment element, right (reference edge in front)
45° angular lube nipples loosely attached.
Runner block body as standard version
Overall length of the runner block =199,0 mm
Interchangeability: The runner blocks and the guide rails can be combined as desired within each accuracy class.
- Area of application: For the most demanding rigidity requirements
- Heavy-duty Ball Runner Block for heavy machine construction with extremely high load-bearing capacity
- Maximum rigidity in all load directions
- Improved rigidity under lift-off and side loading conditions due to two additional mounting screw holes at the center of the ball runner block
- High torque load capacity
- Attachments on the ball runner block can be mounted from above and below
- Minimum lubrication quantities thanks to innovative channel design
- Smooth, quiet running thanks to optimally designed ball return and guideway
- Optimized entry-zone geometry and high number of balls minimize variation in elastic deflection
- Different preload classes
- End-face fastening thread for all attachments
- Can be used on all SNS ball guide rails
- Limitless interchangeability as all ball guide rail versions can be combined at will with all ball runner block versions
